Deflecto Air Distribution & Venting Products
905-641-8872   800-665-4328   Fax: 905-641-2696
Sheet Metal | Fittings | Ceiling Boots | Galvanized, HVAC Ceiling Boot Fittings

Galvanized, HVAC Ceiling Boot Fittings

Galvanized, HVAC Ceiling Boot Fittings



View Related Products              Print This Page

Available Products:
Product Code Photo Specs Product Description Packed Case Pack CS. CB
FT3
CS. CB
M3
Pce Wt.
Lbs.
Pce Wt.
KG.
CS Wt.
Lbs.
CS Wt.
KG.
UPC Code Bar Code

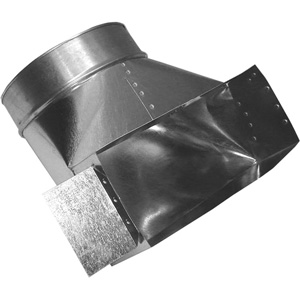

CB4105 Ceiling Boot,4" x 10" x 5"(10.1 x 25.4 x 12.7cm)Galvanized 90 degree Round to Rectangular Transition with Tabs Bulk 30 9.00 0.25 1.00 0.45 29.85 13.54 0 79916 90638 6 5 00 79916 90638 1
CB4106 Ceiling Boot,4" x 10" x 6"(10.1 x 25.4 x 15.2cm)Galvanized 90 degree Round to Rectangular Transition with Tabs Bulk 27 9.00 0.25 1.06 0.48 28.70 13.02 0 79916 90639 3 5 00 79916 90639 8

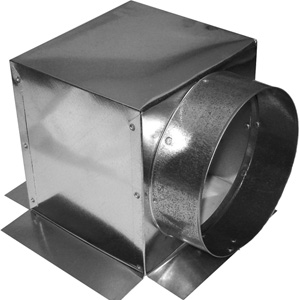

CBS664 Ceiling Box Side ,6" x 6" x 4"(15.2 x 15.2 x 10.1cm)Galvanized 90 degree Round to Square Transition with Flanges Bulk 30 9.00 0.25 1.66 0.75 49.92 22.64 0 79916 40422 6 5 00 79916 40422 1
CBS665 Ceiling Box Side ,6" x 6" x 5"(15.2 x 15.2 x 12.7cm)Galvanized 90 degree Round to Square Transition with Flanges Bulk 15 6.49 0.18 1.83 0.83 27.47 12.46 0 79916 90640 9 5 00 79916 90640 4
CBS666 Ceiling Box Side ,6" x 6" x 6"(15.2 x 15.2 x 15.2cm)Galvanized 90 degree Round to Square Transition with Flanges Bulk 30 6.49 0.18 2.16 0.98 64.77 29.38 0 79916 90641 6 5 00 79916 90641 1
CBS885 Ceiling Box Side ,8" x 8" x 5"(20.3 x 20.3 x 12.7cm)Galvanized 90 degree Round to Square Transition with Flanges Bulk 12 9.00 0.25 2.71 1.23 32.57 14.77 0 79916 93166 1 5 00 79916 93166 6
CBS886 Ceiling Box Side ,8" x 8" x 6"(20.3 x 20.3 x 15.2cm)Galvanized 90 degree Round to Square Transition with Flanges Bulk 12 9.00 0.25 2.75 1.25 32.99 14.96 0 79916 90642 3 5 00 79916 90642 8
CBS887 Ceiling Box Side ,8" x 8" x 7"(20.3 x 20.3 x 17.7cm)Galvanized 90 degree Round to Square Transition with Flanges Bulk 12 9.00 0.25 2.78 1.26 33.40 15.15 0 79916 90643 0 5 00 79916 90643 5
CBS888 Ceiling Box Side ,8" x 8" x 8"(20.3 x 20.3 x 20.3cm)Galvanized 90 degree Round to Square Transition with Flanges Bulk 12 9.00 0.25 3.48 1.58 41.80 18.96 0 79916 90644 7 5 00 79916 90644 2

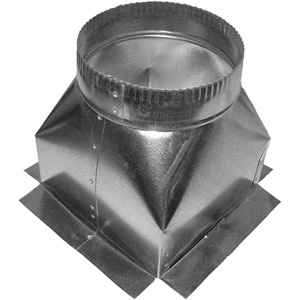

CBT664 Ceiling Box Top ,6" x 6" x 4"(15.2 x 15.2 x 10.1cm)Galvanized Round to Square Transition with Flanges Bulk 45 9.00 0.25 1.55 0.70 69.71 31.62 0 79916 03400 3 5 00 79916 03400 8
CBT665 Ceiling Box Top ,6" x 6" x 5"(15.2 x 15.2 x 12.7cm)Galvanized Round to Square Transition with Flanges Bulk 45 9.00 0.25 1.58 0.71 70.92 32.17 0 79916 90645 4 5 00 79916 90645 9
CBT666 Ceiling Box Top ,6" x 6" x 6"(15.2 x 15.2 x 15.2cm)Galvanized Round to Square Transition with Flanges Bulk 30 9.00 0.25 1.64 0.74 49.14 22.29 0 79916 90646 1 5 00 79916 90646 6
CBT885 Ceiling Box Top ,8" x 8" x 5"(20.3 x 20.3 x 12.7cm)Galvanized Round to Square Transition with Flanges Bulk 34 9.17 0.26 1.72 0.78 58.55 26.56 0 79916 03401 0 5 00 79916 03401 5
CBT886 Ceiling Box Top ,8" x 8" x 6"(20.3 x 20.3 x 15.2cm)Galvanized Round to Square Transition with Flanges Bulk 35 9.00 0.25 1.74 0.79 61.01 27.67 0 79916 90647 8 5 00 79916 90647 3
CBT887 Ceiling Box Top ,8" x 8" x 7"(20.3 x 20.3 x 17.7cm)Galvanized Round to Square Transition with Flanges Bulk 25 9.00 0.25 1.99 0.90 49.68 22.53 0 79916 90648 5 5 00 79916 90648 0
CBT888 Ceiling Box Top ,8" x 8" x 8"(20.3 x 20.3 x 20.3cm)Galvanized Round to Square Transition with Flanges Bulk 25 9.00 0.25 2.01 0.91 50.33 22.83 0 79916 90649 2 5 00 79916 90649 7

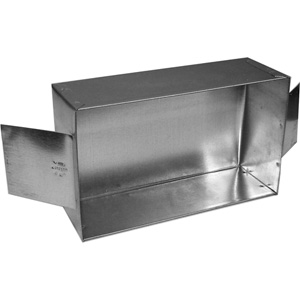

RBOX610 Galvanized Register Box,6" x 10" x 3" x 30ga(15.2 x 25.4 x 7.6 x .030cm) Side Tabs included Bulk 50 9.00 0.25 0.77 0.35 38.65 17.53 0 79916 00373 3 5 00 79916 00373 8
